Ⅰ. Application:
SHG Wet Film Thickness Gauge(Comb Type):
Wet Film Thickness Gauge(Comb Type) produced by company is a tool for determining the wet film thickness of paint and varnish during application.
| Type | Name | Ranges off Measurement(μm） | Overall Dimensions |
| SHG-100 | Wet Film Thickness Gauge(Comb Type) | 10~100 | 65×36×1.5 |
| SHG-150 | 15~150 | ||
| SHG-200 | 20~200 | ||
| SHG-700 | 250~700 | ||
| SHG-750 | 50~275300~750 | 65×43×1.5 | |
| SHG-80MIL | 1~80MIL | 83×57×1.5 | |
| SHG-2500 | 300~2500 | 85×64×2 | |
| SHG-3000 | 25~3000 | 74×64×1 | |
| Custom |

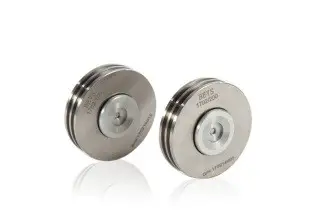

YQH Wet Film Thickness Gauge(Wheel type):
Wheel Type Wet Film Thickness Gauge(Wheel type) produced by our company is a tool for determining the wet film thickness of paint and varnish during application. The gauge is not only on the smooth surface but also on the curved surface. It gives high accurate measurement.
| Type | Name | Ranges off Measurement(μm） | Overall Dimensions |
| SHG-100 | Wet Film Thickness Gauge(Comb Type) | 10~100 | 65×36×1.5 |
| SHG-150 | 15~150 | ||
| SHG-200 | 20~200 | ||
| SHG-700 | 250~700 | ||
| SHG-750 | 50~275300~750 | 65×43×1.5 | |
| SHG-80MIL | 1~80MIL | 83×57×1.5 | |
| SHG-2500 | 300~2500 | 85×64×2 | |
| SHG-3000 | 25~3000 | 74×64×1 | |
| Custom |

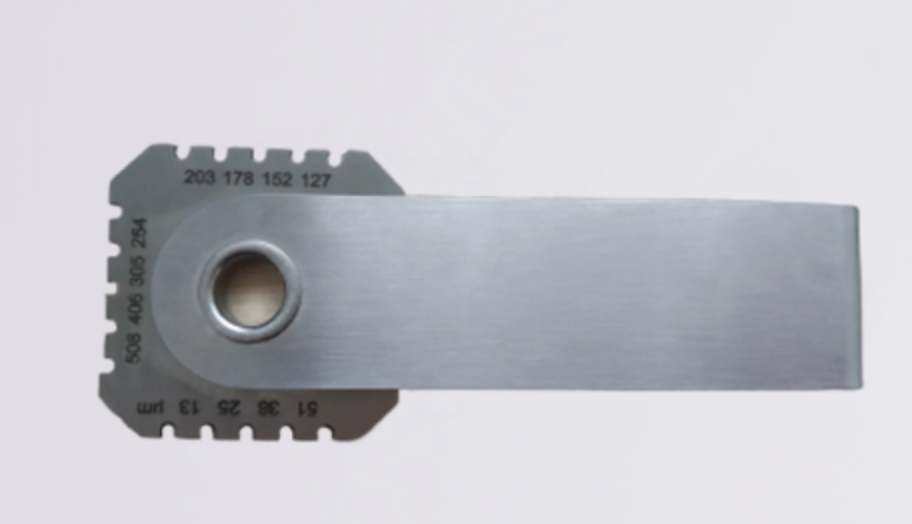

NHG Wet Film Thickness Gauge(Handle):
Wet Film Thickness Gauge (Handle) produced by company is a tool for determining the wet film thickness of paint and varnish during application.
NHG Wet Film Thickness Gauge(Handle type):
| Type | Name | Ranges off Measurement | Overall Dimensions |
| NHG-20 | Wet Film Thickness Gauge(Handle) | 5~20mils | 100×38×16 |
| NHG-60 | 4~60mils |
