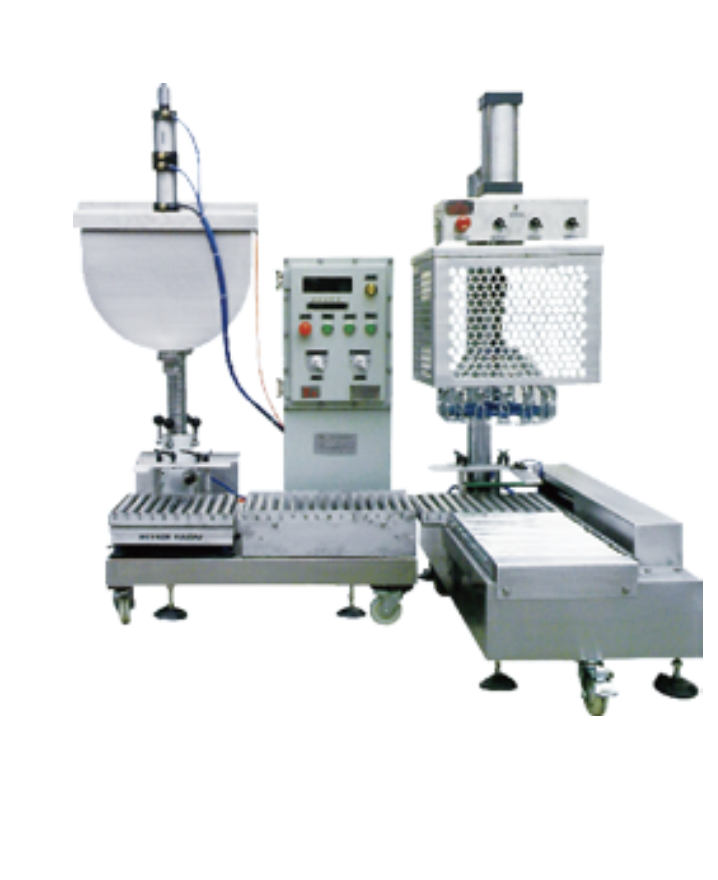

Main features:
This filling machine is suitable for small quantity filling of wide round barrels within 50kgs. It is equipped with an automatic cap clipping machine. Square barrels with small opening can also be filled with this filling machine.
Main application:
Coating, paint, ink, glue, curing agent, solvent, chemicals, detergent, pesticide, medicine, lubrication oil and all kinds of flowing liquid.
Main Function:
- Put barrels by manual, fill automatically, cover-clipping automatically
- 10 groups of prescription can be set and stored in machine
- Net weight/gross weight, two kinds of filling mode
- Automatic/manual, 2 kinds of operation mode
- Filling fast/slow two steps of filling speed
- Suitable for filling ≤50kg open-barrels filling
- May set and store, 30 groups of prescription
- Gross/net filling model
- Emergent stop/break/barrel moves, twice protection
- Balance exceeding automatic alarm
- Store barrel with automatic material supply control
Main technical parameters:
| Item | Value | Item | Value |
|---|---|---|---|
| Filling scope | ≤50kg | Barrel dimension | ≤Ø350 × H400mm |
| Division value | 5g | Power source | AC220V ±10% 50HZ |
| Filling accuracy | ≤±1% | Air source | 0.5Mpa |
| Filling speed | 4–5 cans/min | Outside dimension | 1400 × 1240 × 1480 (mm) |
