Main features:

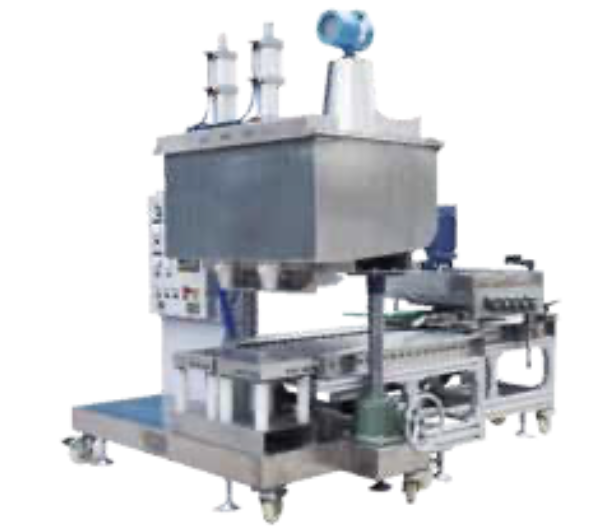

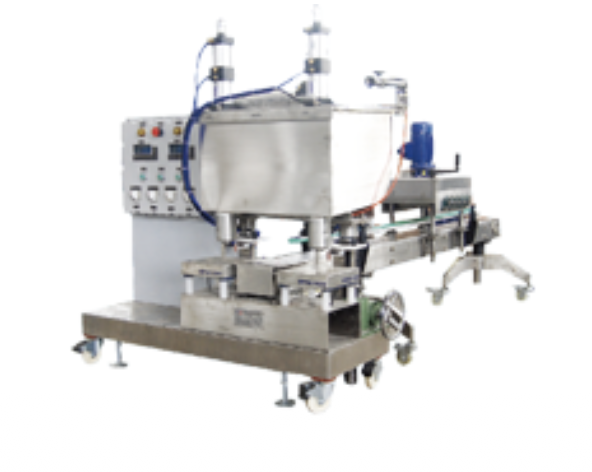

This filling machine is suitable for small quantity filling of wide round barrels within 6kgs. It is equipped with an automatic rolling capper for wide-round cans and a cap pressing machine for square cans with small opening. It has strong adaptability.
Main application:
Coating, paint, ink, glue, curing agent, solvent and all kinds of flowing liquid.
Main Function:
- Filling automatically, then pull the barrel out of scales automatically
- Suitable for filling ≤50kg barrels
- Anti-splash filling head
- Speed increases doubly with two filling heads
- May set and store, 10 groups of prescription
- Gross/net filling model
- Automatic/manual operation model
- Filling quick/slow two grades of speed
- Emergent stop/break/barrel moves, twice protection
- Balance exceeding automatic alarm
- Store barrel with automatic material supply control
- A is normal model, B is explosion proof model
- Double filling heads or single filling head choosable
Main technique parameter:
| Item | Value | Item | Value |
|---|---|---|---|
| Filling scope | ≤6kg | Barrel dimension | Dia.200, H300 (mm) |
| Division value | 2g | Power source | AC220V ±10% 50HZ |
| Filling accuracy | ≤±4g | Air source | 0.3/0.5Mpa |
| Filling speed | 16–25 cans/min | Outside dimension | 1500×2440×1710 (mm) |
