Brief:

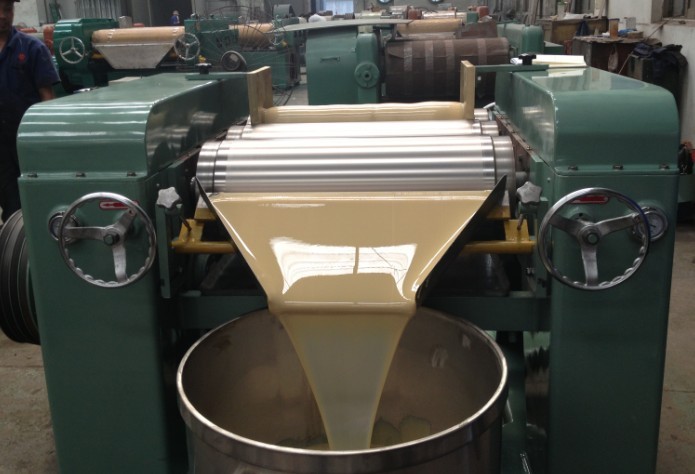

Three Roll Mill is widely used in paste materials including inks, paints, pigment, soap, artifica leather, plastic, lubricant grease, chocolate and so on, especially for high viscosity and fineness material. The roller is made of high hardness alloy and anti abrade, also equipped with cooling device for continuous operation.
Technical parameters:
| Specification | SG6 | SG9 |
| material of roller : | alloy | alloy |
| dia.of roller: | 150mm | 260mm |
| length of roller: | 300mm | 675mm |
| Discharge distance from ground: | 660mm | 580mm |
| speed of slow roll: | 34r/min | 23r/min |
| speed of mid roll; | 78r/min | 64r/min |
| speed of fast roll; | 181r/min | 183r/min |
| motor power: | 2.2kw | 7.5kw |
| size: | 1000X1000X1400mm | 1800X1450X1600mm |
| weight: | 500kgs | 2100kgs |
| Ex-proof motor, switches, wires | 262,000 | 472,000 |
| Non-Ex-proof | 250,000 | 450,000 |
Quotation:
| Name | Model | Unit price | Remark | |
| Three roll mill | SG6 | USD2510/Set FCA Shanghai | Non-Ex-proof | |
| USD2660/Set FCA Shanghai | Ex-proof motor, switches, wires | |||
| USD2580/Set FCA Shanghai | Ex-proof motor | |||
| Three roll mill | SG9 | USD5640/Set FCA Shanghai | Non-Ex-proof | |
| USD5865/Set FCA Shanghai | Ex-proof motor, switches, wires | |||
| USD5750/Set FCA Shanghai | Ex-proof motor |
