Customer request:
product: Crayon
output: 100-200kg/h
Modification:
Slow & mid roller go through with hot water by rotary connection ( hot water supply by customer)
Fast roller go through with cool water

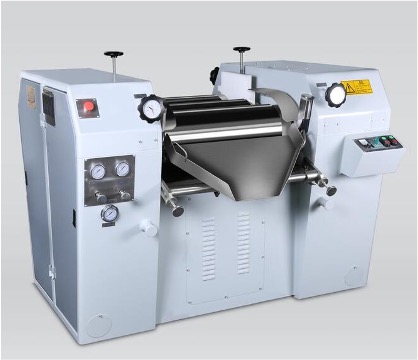

Reference picture:
Brief:
Three Roll Mill is widely used in paste materials including inks, paints, pigment, soap, artifica leather, plastic, lubricant grease, chocolate and so on, especially for high viscosity and fineness material. The roller is made of high hardness alloy and anti abrade, also equipped with cooling device for continuous operation.
The most advantage of hydraulic type three roll mill is adoption of inverter to control the roller speed, and also equipped with mechanical ( or hydraulic) gap adjustment , which can adjust the gap freely without break away the rollers so as to make it into the best conditions to process all kinds of high , medium and low viscosity material. The production capacity is about 4 times of base type three roll mi
Technical parameters:
| Specification | EKS-HR260 |
| material of roller : | Special alloy |
| Machine type | Non-Ex-proof ,2 rollers for hot water |
| dia.of roller: | 260m |
| length of roller: | 650mm |
| Discharge distance from ground: | 680mm |
| speed of slow roll: | 49r/min |
| speed of mid roll; | 140r/min |
| speed of fast roll; | 0-400r/min inverter adjust |
| Main motor power: | 22kw, Dazhong brand |
| Hydraulic motor power: | 1.1kw, Dazhong brand |
| Hydraulic pressure: | 6.3Mpa |
| size: | 1670*1450*1290mm |
| weight: | 2400kgs |
| Power supply | 380V/50Hz, three phases |
| Efficiency | 100-200 kgs/hour |
| Production fineness | 3-15 micron |
| Cooling system | One roller |
| Hot water | 2 rollers |
| Roller concentricity: | ＜0.015mm |
| Roller treatment: | chilled alloy by centrifugal casting, no need heat treatment |
| Roller type | HS68-72 |
| Frame: | cast iron frame |
