Main features:

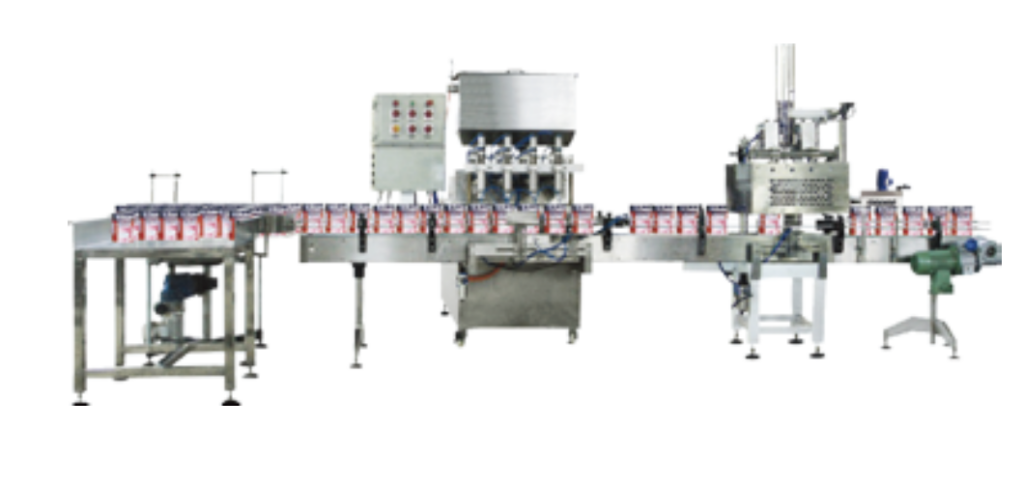

This filling machine is suitable for filling of wide open round cans within 5L. It can be equipped with an automatic cap pressing machine, and cap placing device conveyor is automatic.
Main application:
Coating, paint, ink, glue, curing agent, solvent, chemicals, detergent, pesticide, medicine, lubrication oil and all kinds of flowing liquid.
Main Functions:
- Automatic cans transportation, can filling, cap placing and cap rolling
- PLC control with automatic operation
- Volume displays by counter and volume adjustment simple
- Measurement cylinder is horizontally placed and it’s convenient to clean
- This filling machine is able to adopt to low, medium and high viscosity materials
- Filling speed is fast and it’s highly efficient
- Automatic material supply control
- Explosion proof grade: EXDIIBT6
Main parameters:
| Item | Value | Item | Value |
|---|---|---|---|
| Filling scope | 0.5–5L | Power source | AC380V±10% 50HZ |
| Filling head | 4pcs | Air source | 0.5Mpa |
| Filling accuracy | ≤±5L | Air consumption | 0.5m³/min |
| Filling speed | 30–50 barrels/hour | Power | 1.2kw |
| Barrel size | ≤Ø180×H200 | Dimension | 4800×2100×1900mm |
