Description:

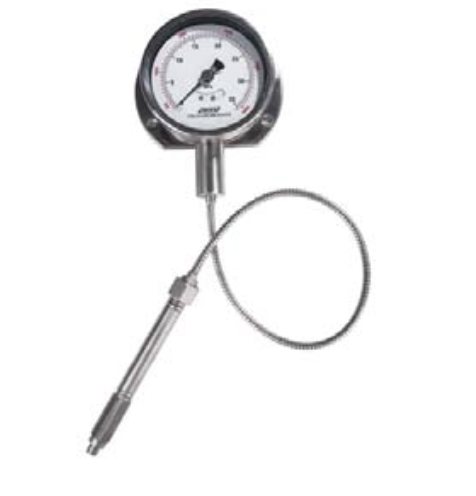

PT124Y-614 adopts the original packaging machine stamen, and is designed with an all stainless steel structure, isolated diaphragm, and local index display. With dial plate stem-up and stem-down versions, the gauge head can be rotated 360° for unobstructed viewing.
Application:
- Chemical fiber and filature
- Rubber & plastic machinery
- Equipment for high temperature steam
Feature:
- Direct local reading design
- Customer defined pressure gauge
- Easy to install, high reliability
- Zero adjustment
Specification:
| Item | Value |
|---|---|
| Range | 0…1MPa to 0…150MPa |
| Accuracy | ±1.6%FS |
| Configuration | Bourdon tube |
| Overpressure | 1.5×FS |
| Max Diaphragm Temperature | 350℃ |
| Dial Diameter | 100mm |
| Flexible Length | 0.5…5M |
| Process Connection | 1/2″-20UNF, M14×1.5, M18×1.5 (optional) |
