Description:

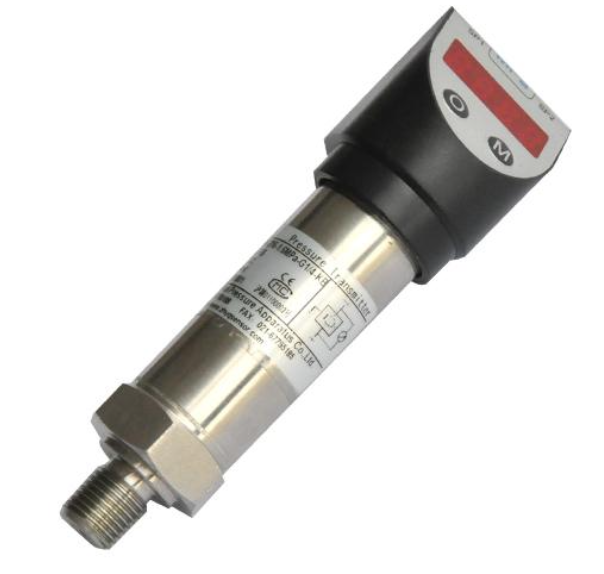

Adopting global advanced electron ceramic technology, PT124B-216 (LED display) with low range has the character of overload resistance, high impact resistance, excellent linearity, lasting high stability, wide temperature range, corrosion proof, etc. This series can be applied in Defense industry, scientific research, Space industry, Petroleum, Chemical industry, Electric power, Ocean and other fields.
Application:
- Defense industry, Scientific research, Space industry
- Petroleum, Chemical industry
- Electric power, Ocean and other fields
Feature:
- Pressure Range: 0…1bar to 0…1000bar
- 4-digit alphanumeric display
- 2 switching alarms output
- Function programmable
- High accuracy, stable capability, little temp-drift
- Wide temperature range, corrosion proof

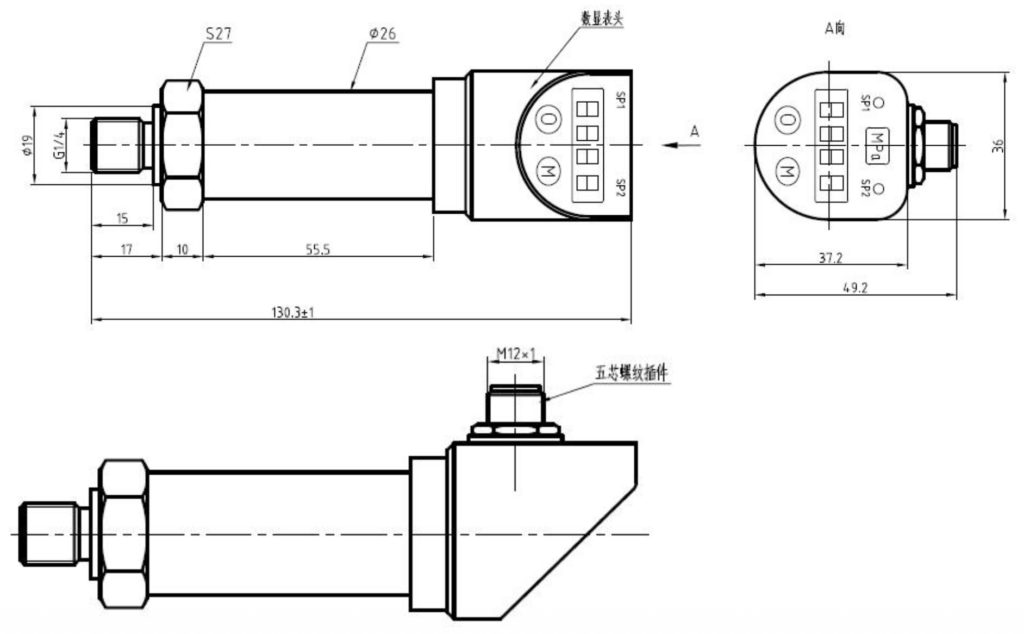

Dimension:
Specification:
| Item | Value |
|---|---|
| Pressure Range | 0…1bar to 0…1000bar |
| Accuracy | 0.5%FS |
| Nonlinearity | 0.2%FS |
| Reliability | 0.05%FS |
| Output | 4-20mA + 2 switching (Optocoupler Type or Relay optional) |
| Input voltage | 24(12~36)VDC |
| Operate Temperature | -20~80℃ |
| Compensated temperature | 0~70℃ |
| Overload pressure | 150%FS |
| Medium material | Stainless steel |
| Electric connector | M12×1 |
| Process connector | G1/4, G1/2, 1/2NPT, 1/4NPT, M12×1.5 (customer design) |
Alarm Function:
- Two switching alarm outputs available in two types:
- Optocoupler Type (Type A): signal output — when triggered, the alarm terminal connects to GND and can pass 20mA current.
- Relay Type (Type B): signal output with high potential (PNP) or low potential (NPN) options — NPN provided by default, passing 1A current. Please specify alarm type before ordering; relay switch life is rated for 100,000 cycles, so it’s not suitable for frequent switching.
- When an alarm is triggered, the corresponding indicator on the panel flashes to warn.
