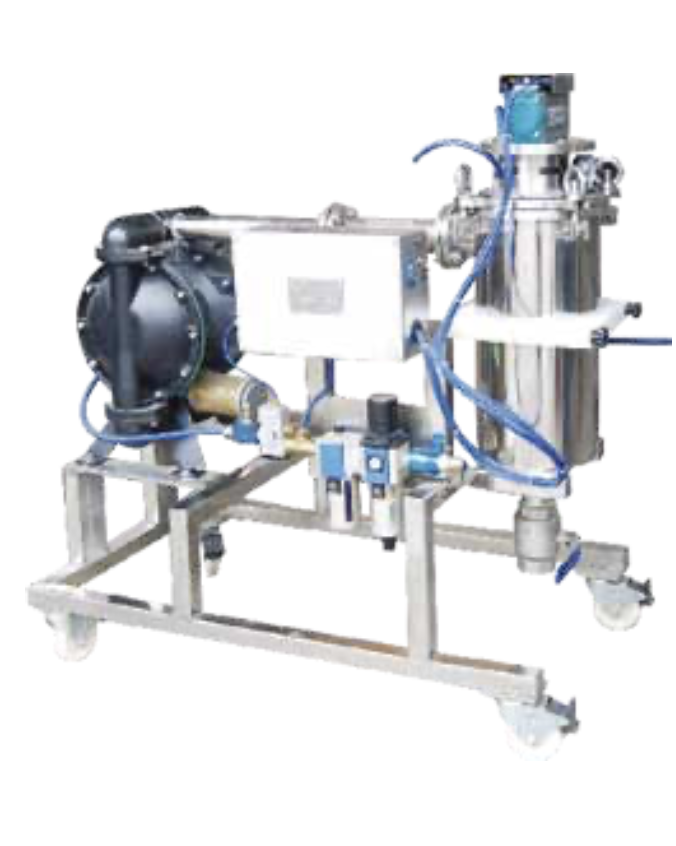

Main structure and working principle:
Contains a stainless steel self-scrape-clean filter with an imported filtration net, plus a pneumatic pump or electric gear pump imported from America — all installed on a trolley that can be moved to any place on the production line for continuous working.
Main characters:
- Filter needs no manual maintenance and can be used forever, saving the cost of changing filter bags and protecting the environment.
- Entire close-in filter — filters online continuously, reduces pollution, and improves output.
- Very short time to discharge draft (less than 1 second), much less than normal filter methods, reducing loss of production.
- Quiet, safe, protects the environment.
- Payback period is very short compared to other filters.
Configuration:
- Pneumatic pump: American Ingersoll Rand.
- Matches an imported filter net of stainless steel material.
- Includes a small trolley and pad for automatic controlling.
- Equipment material quality: major components made of stainless steel.
Main application:
Good filtering solution for material containing large impurities such as paint, ink, all kinds of coating, etc. Especially good for material with high viscosity.
| Model | Filter | Pneumatic Pump | ||
|---|---|---|---|---|
| Filtering Accuracy (um) | Speci (″) | Max flux (m³/h) | Max pressure (Mpa) | |
| GQL−800 | 30、50、70、100、150、200 | 1.5 | 7~8 | 0.8 |
