Description:

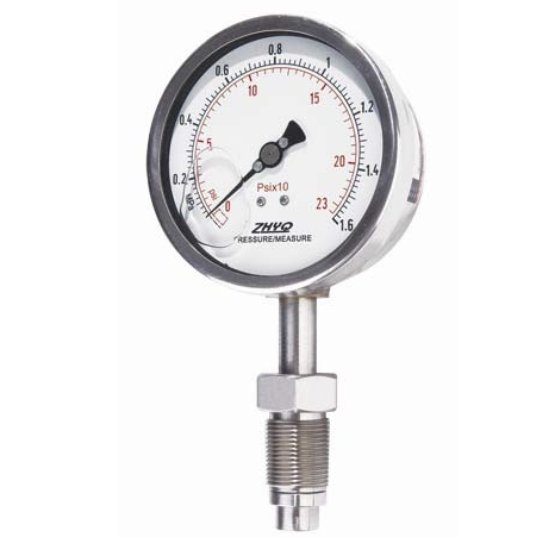

PT124Y-620 adopts a high performance bourdon tube, designed with a special shockproof configuration and high pressure endurance. It is suitable for process pressure measuring of machinery such as homogenizer machines.
Application:
- Homogenizer
- Mulser
- Crusher
- Food or other machinery
Feature:
- Good cost performance
- Mechanical design
- Easy to install
- Good shockproof and corrosion prevention
- High reliability and good repeatability
Specification:
| Item | Value |
|---|---|
| Range | 0~6bar to 1500bar |
| Accuracy | ±1.6%FS |
| Configuration | Bourdon tube |
| Overpressure | 1.5×FS |
| Dial Diameter | 100mm |
| Max Diaphragm Temperature | 125℃ |
| Process Connection | M20×1.5; M18×1.5 (optional) |
