Main features:

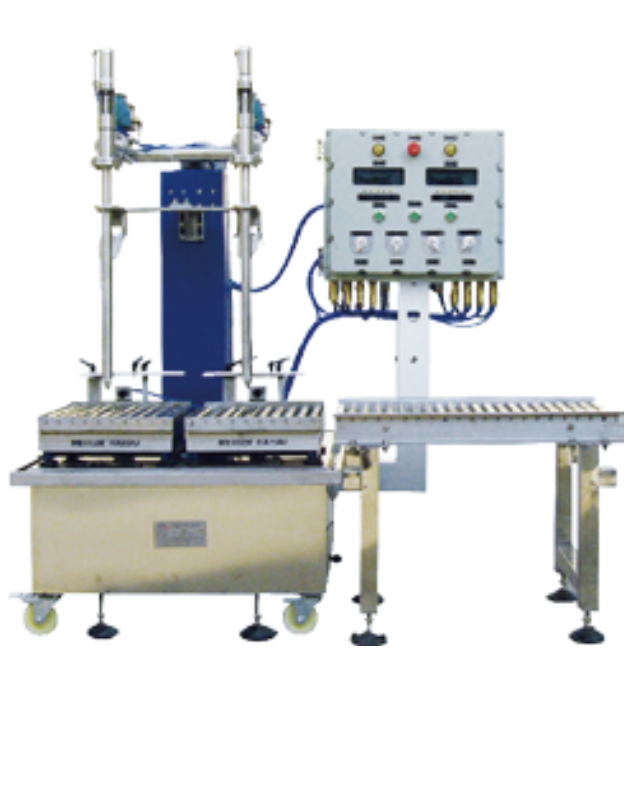

This filling machine is suitable for bottom-filling of round and square barrels with small opening within 50kgs.
Main application:
Foamy liquid and liquid prone to static electricity.
Main Function:
- Filling heads enter to the bottom of the barrels, rise when filling
- Manual barrels push for single head filling machine, automatic barrels push for double heads filling machine
- Especially suitable for foamy and electrostatic materials
- 10 groups of prescription can be set and stored in machine
- Net weight/gross weight, two kinds of filling mode
- Automatic/manual, 2 kinds of operation mode
- Filling fast/slow two steps of filling speed
- Automatic alarm when filling error exceeds setting limit
- A is normal model, B is explosion proof model
- Double filling heads or single filling head choosable
Main technique parameter:
Filling Machine Specification Table
| Filling scope | ≤50 kg | Barrel dimension | Dia.350, h370 (mm) |
|---|---|---|---|
| Division value | 5 g | Power source | AC220V ±10% 50HZ |
| Filing accuracy | ≤ ±10g | Air source | 0.5/ 0.5Mpa |
| Filling speed | 8−10 cans/min | Outside dimension | 6000 × 900 × 2200 (mm) |
