Main function:

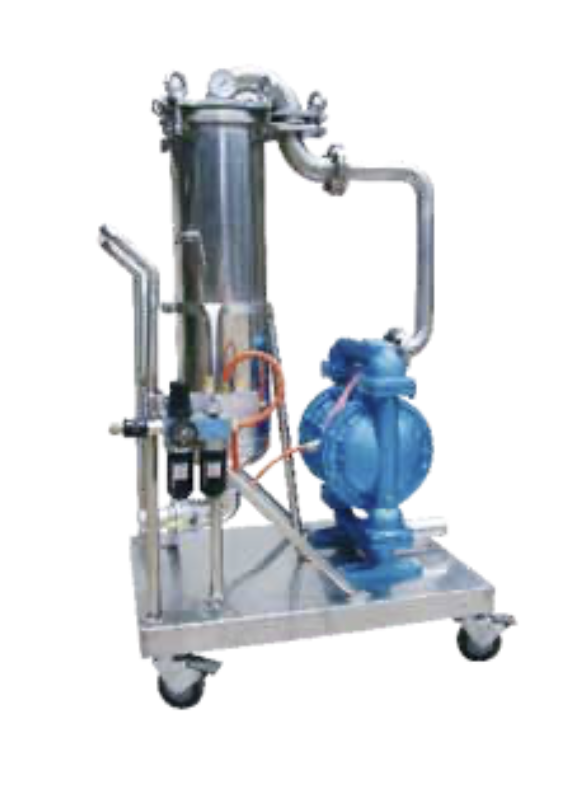

Bag Filter quick-open type pneumatic pump filter includes one/two stainless steel standard filter, American brand pneumatic pump, pneumatic switch and pneumatic control valve. These components are all installed on one trolley and convenient for moving to any production line for operation.
Main application:
Filtering for the materials of paint, printing oil, all kinds of coating, colophony, petroleum, medical product, chemical product, cosmetic, textile chemicals, sensitization, hot solvent, industrial water, plating liquid, milk, mineral water, fruit juice, vegetable oil etc.
Main characters:
- Low shear force, suitable for unstable materials
- Powered by compressed air, suitable for material with middle or high viscosity
- Filtering without electrical spark, meets the explosion proof requirement
| Model | Filter | Pneumatic Pump | ||||
|---|---|---|---|---|---|---|
| Filter area (m²) |
Pressure/Temperature (Mpa / °C) |
Filtering Accuracy (um) | size (″) |
Max flux (m³/h) |
Max pressure (Mpa) |
|
| BF−0.5−B−40 BF−0.5−A−40 |
0.5 | 0.6/120 | 1、3、10…1400 | 1.5″ | 7~8 | 0.8 |
| BF−0.25−B−25 BF−0.25−A−25 |
0.25 | 0.6/120 | 1、3、10…1400 | 1″ | 2−3 | 0.8 |
