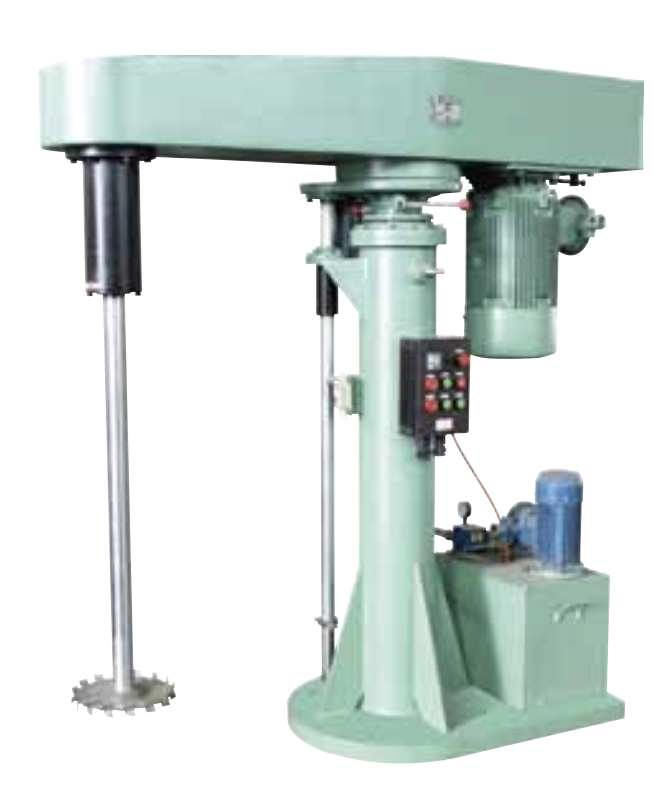

1.HSD high speed dispersion machine
it can mix, dissolve and disperse two or more kind of liquid and powder material.
It can both works single and together with some other sand grinder.
| Type | HSD1.5 Model A |
HSD4 Model A |
HSD5.5–7.5 (HSD11) Model A |
HSD22 (HSD30) Model A&B |
HSD37 Model A&B |
HSD45–75 Model A&B |
HSD90–200 Model B |
|
|---|---|---|---|---|---|---|---|---|
| Motor power (kw) | 1.5 | 4 | 5.5–7.5 (11) | 22 (30) | 37 | 45–75 | 90–200 | |
| Speed (r/min) | 0~1450 | 0~1450 | 0~1450 | 0~1450 | 0~1200 | 0~1200 | 0~1000 | |
| Diameter (mm) | 150 | 200 | 250 | 350 | 400 | 450 | 600 | |
| Lift (mm) | 800 | 800 | 900 | 1200 | 1200~1500 | 1500~2000 | 1800~2800 | |
| Pump power (kw) | 0.55 | 0.55 | 0.75 | 1.5 | 1.5 | 2.2 | 3 | |
| Capacity (L) | 50 | 200 | 400~600 | 600~1000 | 1000~2000 | 1000~2500 | 5000~8000 | |
| Weight (kg) | 360 | 400 | 800 | 1500 | 1700 | 2100 | 2600~3000 | |
| External Dimensions (mm) |
A | 1260 | 1260 | 1770 | 2140 | 2140 | 2600 | 2700 |
| B | 1340 | 1300 | 1700 | 2260 | 2260 | 2800 | 3000 | |
| C | 600 | 600 | 900 | 1100 | 1100 | 1200 | 1600 | |
| Wide | 460 | 460 | 580 | 800 | 800 | 1000 | 1000 | |

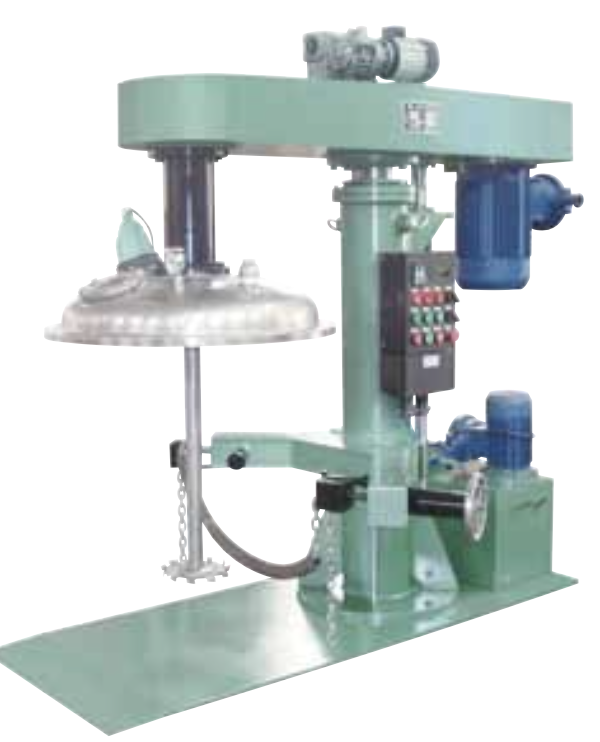

2. HSVD vacuum deforming dispersion machine
Is is used in craftwork with honeycombed material and fugitive solvent. Through creation of vacuum, the material is dispersed in the vacuum container to reduce the bubble and solvent volatilisation. The vacuum condition dispersion accelerates the dispersion of material fines to make the material deaearating quickly. It has simple structure, high degree of vacuum, convenient operation and the wide range of application
| Type | HSDV200 | HSDV400 | HSDV600 | HSDV1000 |
|---|---|---|---|---|
| Motor power (kw) | 7.5 | 15 | 22 | 30 |
| Speed (r/min) | 0–1500 | 0–1500 | 0–1500 | 0–1500 |
| Capacity (L) | 200 | 400 | 600 | 1000 |
| Lift (mm) | 900 | 1000 | 1200 | 1200 |
| Vacuum (mpa) | ≤−0.07 | ≤−0.07 | ≤−0.07 | ≤−0.07 |
| Disc size (mm) | 200 | 250 | 330 | 380 |

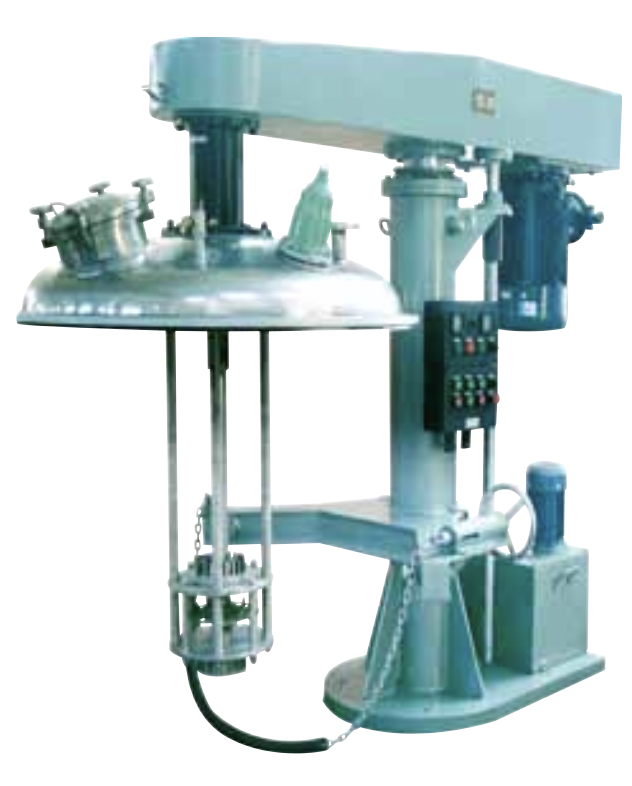

3.ED emulsified dispersion machine
Applicable for coating, ink, pesticide, paper industry emulsification, mixing and dispersing to get uniform material. Good quality is available via powerful high speed shearing in short time.
| Type | ED−4 | ED−7.5 | ED−11 | ED−22 |
|---|---|---|---|---|
| Main motor power (kw) | 4 | 7.5 | 11 | 22 |
| Main shaft speed (r/min) | 2000 | 2000 | 2000 | 1800 |
| Tank capacity (L) | < 150 | < 300 | < 450 | < 1000 |
| Dispersing plate diameter (mm) | 150 | 200 | 250 | 300 |
| Shearing plate diameter (mm) | 100 | 150 | 200 | 250 |
| Frame up and down height (mm) | 600 | 900 | 900 | 1200 |
| Motor high speed mode | Electromagnetic speed adjustable / Frequency conversion speed adjustable | |||
| Motor working environment | Explosive proof / Common | |||

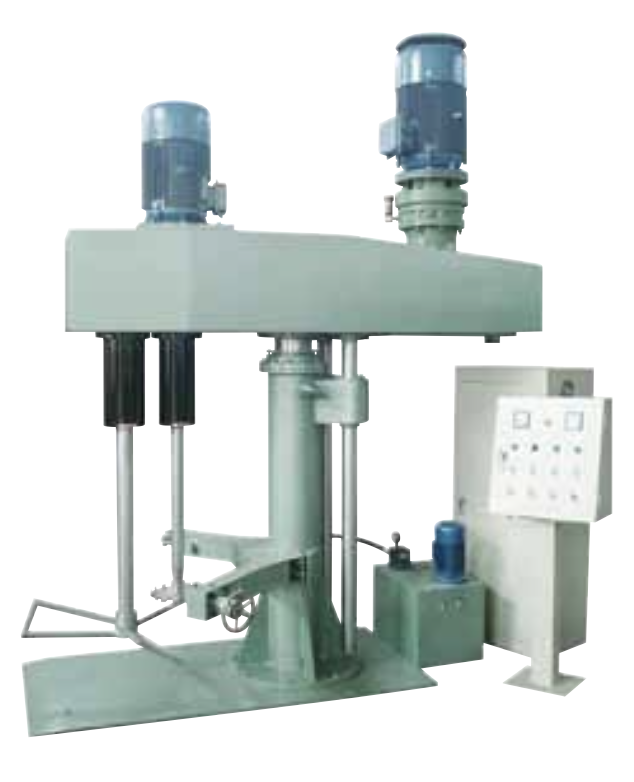

4.DAM dual-axle mixer
High efficiency mixing equipment applicable for high viscosity, to make material dispersing, dissolve and mixing uniform. It is widely used in production of concerned chemical products such as ink for offset printing, unsaturated polyester putty, adhesive etc.
| Type | DAM−600 | DAM−900 | DAM−1000 | DAM−1200 | DAM−1300 | |
|---|---|---|---|---|---|---|
| Tank capacity (L) | 150 | 500 | 600 | 1000 | 1200 | |
| High speed motor power (kw) | 11 | 22 | 22 | 30 | 37 | |
| Low speed motor power (kw) | 7.5 | 22 | 22 | 22 | 24/34 | |
| High speed blade diameter (mm) | 200 | 250 | 280 | 300 | 300 | |
| Low speed mixing device diameter (mm) | 570 | 860 | 960 | 1160 | 1260 | |
| High speed shaft speed (r/min) | 1470 | 1470 | 1470 | 1470 | 1470 | |
| Low speed shaft speed (r/min) | 120–60 | 120–60 | 120–60 | 120–60 | 120–60 | |
| Max. range of up and down (mm) | 700 | 950 | 1000 | 1100 | 1100 | |
| Range of up and down (mm) | 200 | 250 | 300 | 450 | 450 | |
| External Dimensions (mm) |
A (Length) | 1670 | 2950 | 2950 | 2800 | 2800 |
| B (Width) | 1250 | 1400 | 1500 | 1600 | 1600 | |
| H (Height) | 2570 | 3600 | 3600 | 3120 | 3120 | |
| L1 (Center distance) | 625 | 880 | 880 | 930 | 930 | |
| L2 (Center distance) | 150 | 265 | 265 | 295 | 295 | |

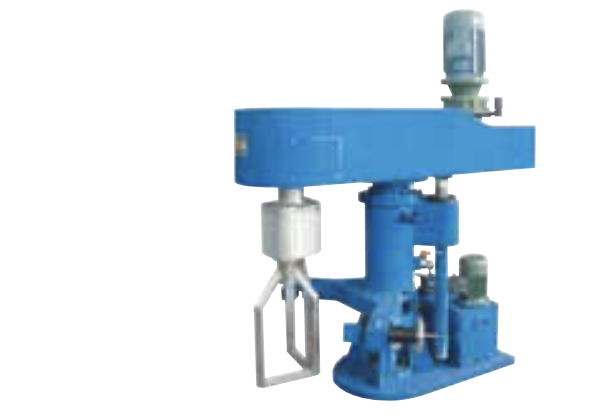

5.PLM plant mixer / PLMG gantry planet mixer
Applicable for high viscosity material mixing, also under vacuum condition in short time.
| Type | PLM60 | PLM150 | PLM300 | PLM500 | PLM800 |
|---|---|---|---|---|---|
| Main motor power (kw) | 4 | 7.5 | 15 | 22 | 30 |
| Pump motor power (kw) | 0.75 | 1.1 | 1.5 | 2.2 | 2.2 |
| Tank capacity (L) | 60 | 150 | 300 | 500 | 800 |
| Shaft revolution (r) | 0–43 | 0–33 | 0–20 | 0–20 | 0–20 |
| Shaft rotation (r) | 0–78 | 0–60 | 0–40 | 0–40 | 0–40 |

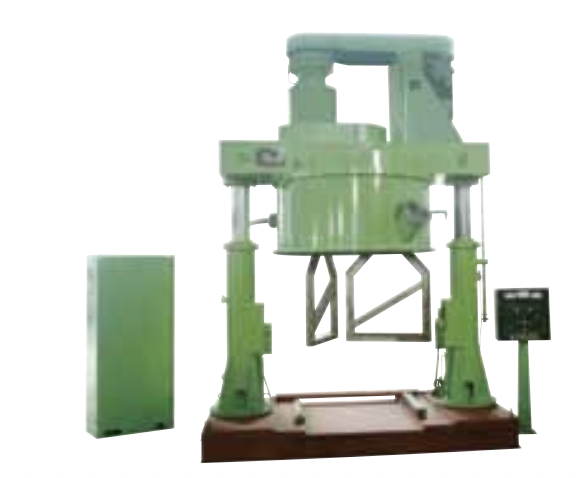

Applicable for high viscosity material, especially for offset ink and adhesive (putty). The revolution and rotation can make material uniform in short time and no vapor pocket. The hydraulic station control the mixing device up and down and it can move stably and security, also stop at any position.
| Model | PLMG−1000 | PLMG−1500 | |
|---|---|---|---|
| Tank capacity (L) | 1000 | 1760 | |
| Speed (r/min) | Revolution | 0~20 | 0~20 |
| Rotation | 0~60 | 0~60 | |
| Main motor power (kw) | 37 | 45 | |
| Overall dimension (mm) |
A (mm) | 2540 | 2720 |
| B (mm) | 1300 | 1420 | |
| C (mm) | 3080 | 3300 | |
| L (mm) | 1000 | 1400 | |
